Texas Instruments
DCH010515SN7
1W 15V Isolated DC/DC Converter, 4.5-5.5V In, 3kV Isolation, SIP Module
Isolated DC/DC converter module, 1W output power, 15V output voltage, and 67mA output current. Features 3kVDC isolation, 4.5V to 5.5V input voltage range, and 75% efficiency. Operates from -40°C to 85°C in a 4-SIP module package with tin, gold, or matte contact plating. Boost and Push-Pull topology.
PackageModule
Power1W
Quick Jump:
Technical Specifications
Texas Instruments DCH010515SN7 technical specifications.
General
Package/Case
Module
Contact Plating
Tin, Gold, Matte
Current - Output 1
67mA
Depth
7.62mm
Efficiency
75%
Height
0.4inch
Isolation
Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
19.56mm
Max Input Voltage (DC)
5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
67mA
Max Output Power
1W
Max Output Voltage
15.75V
Min Output Voltage
14.25V
Max Power Dissipation
1W
Number of Outputs
1
Output Current
67mA
Output Power
1W
Output Voltage
15V
Package Quantity
70
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCH01
Thickness
10.15mm
Topology
Boost, Push-Pull
Voltage - Output 1
15V
Width
0.3inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DCH010515SN7 Datasheet
Download the complete datasheet for Texas Instruments DCH010515SN7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

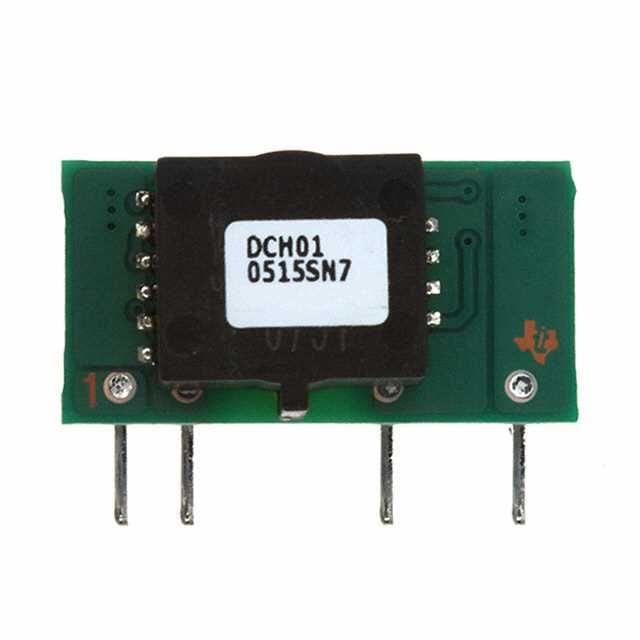

Product Images
