2W isolated unregulated DC/DC converter in a PDIP package. Features dual 15V outputs with 66mA and 60mA current capabilities, operating from a 4.5V to 5.5V input. Achieves 85% efficiency with 1kV isolation and an operating temperature range of -40°C to 85°C. Includes over-temperature protection (OTP) and is RoHS compliant.
PackagePDIP
Power2W
Quick Jump:
Technical Specifications
Texas Instruments DCP020515DP technical specifications.
General
Package/Case
PDIP
Current - Output 1
66mA
Current - Output 2
60mA
Efficiency
85%
Features
OTP
Height
0.21inch
Isolation Voltage
1kV
Lead Free
Lead Free
Length
0.78inch
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
66mA
Max Output Power
2W
Max Output Voltage
15.75V
Min Output Voltage
14.25V
Max Power Dissipation
810mW
Number of Outputs
2
Output Current
66mA
Output Power
2W
Output Type
Fixed
Output Voltage
15V
Package Quantity
25
Packaging
Rail/Tube
Quiescent Current
27mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DCP02
Topology
Push-Pull
Voltage - Output 1
15V
Voltage - Output 2
-15V
Width
0.33inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DCP020515DP Datasheet
Download the complete datasheet for Texas Instruments DCP020515DP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

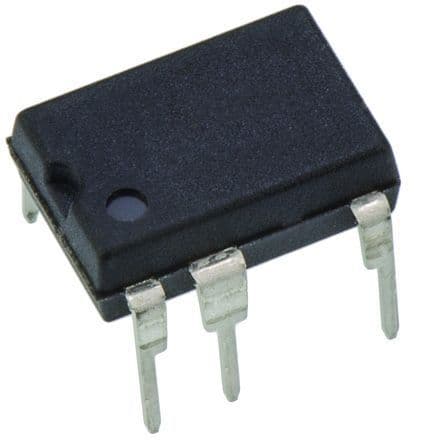

Product Images
