Miniature, 1W isolated regulated DC/DC converter in a 12-SOP package. Features 3.3V fixed output voltage with 300mA maximum output current, operating from a 4.5V to 5.5V input range. Offers 1kV isolation voltage and protection against over-temperature (OTP) and short-circuit (SCP). Suitable for operation between -40°C and 85°C, this RoHS compliant component is supplied on tape and reel.
PackageSOP
Power1W
Quick Jump:
Technical Specifications
Texas Instruments DCR010503U/1K technical specifications.
General
Package/Case
SOP
Current - Output 1
300mA
Features
OTP, SCP
Height
0.1inch
Isolation Voltage
1kV
Lead Free
Lead Free
Length
0.7inch
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Power
1W
Max Output Voltage
3.366V
Min Output Voltage
3.234V
Max Power Dissipation
1W
Number of Outputs
1
Output Current
300mA
Output Power
1W
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
24mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
DCR01
Voltage - Output 1
3.3V
Width
0.41inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DCR010503U/1K Datasheet
Download the complete datasheet for Texas Instruments DCR010503U/1K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

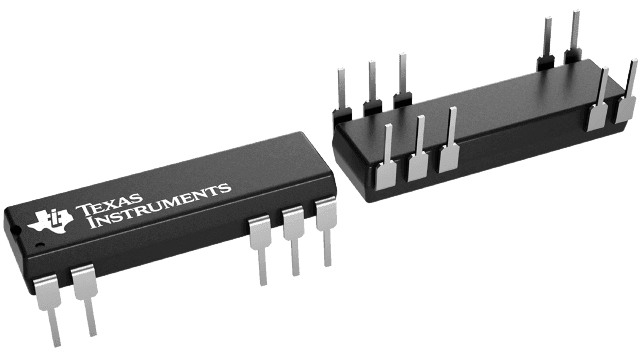

Product Images
