1W isolated regulated DC/DC converter in a 12-pin SOP package. Features 3.3V fixed output voltage, 300mA output current, and 1kV isolation voltage. Operates from a 10.8V to 13.2V input range with a maximum output power of 1W. Includes over-temperature protection (OTP) and short-circuit protection (SCP). Rated for -40°C to 85°C operating temperature.
PackageSOP
Power1W
Quick Jump:
Technical Specifications
Texas Instruments DCR011203U/1K technical specifications.
General
Package/Case
SOP
Current - Output 1
300mA
Features
OTP, SCP
Height
0.1inch
Isolation Voltage
1kV
Lead Free
Lead Free
Length
0.7inch
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Max Output Power
1W
Max Output Voltage
3.366V
Min Output Voltage
3.234V
Max Power Dissipation
1W
Number of Outputs
1
Output Current
300mA
Output Power
1W
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
13mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
DCR01
Voltage - Output 1
3.3V
Width
0.41inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DCR011203U/1K Datasheet
Download the complete datasheet for Texas Instruments DCR011203U/1K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

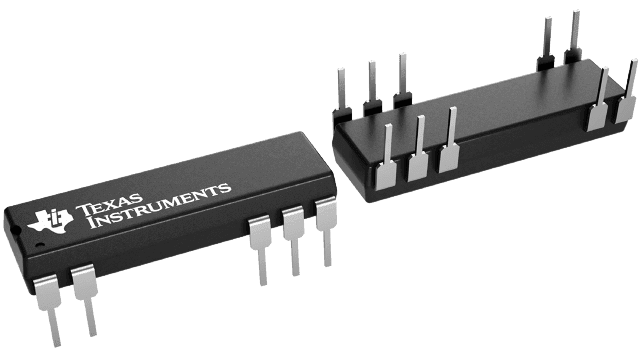

Product Images
