Analog interface IC, bus transceiver featuring 6dB voltage gain and 10kR input resistance. This single-channel audio balanced line driver operates with a dual supply voltage range of 4.5V to 18V, or a single supply from 9V to 36V. It offers a high Power Supply Rejection Ratio of 80dB and a Common Mode Rejection Ratio of 46dB. The component boasts a slew rate of 15V/µs and a quiescent current of 5.2mA, suitable for surface mount applications with a 16-SOIC package.
PackageSOIC
Current5.2mA
Resistance10kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV134UAE4 technical specifications.
General
Package/Case
SOIC
Common Mode Rejection Ratio
46dB
Gain
6dB
Height
2.65mm
Input Offset Voltage (Vos)
10mV
Input Resistance
10kR
Interface
Analog
Lead Free
Lead Free
Length
10.3mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
36V
Min Supply Voltage
9V
Mount
Surface Mount
Number of Channels
1
Number of Elements
3
Operating Supply Voltage
18V
Package Quantity
40
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
5.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
RoHS Compliant
Yes
Series
DRV134
Slew Rate
15V/µs
Supply Current
5.2mA
Thickness
2.35mm
Voltage Gain
6dB
Weight
0.014829oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV134UAE4 Datasheet
Download the complete datasheet for Texas Instruments DRV134UAE4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

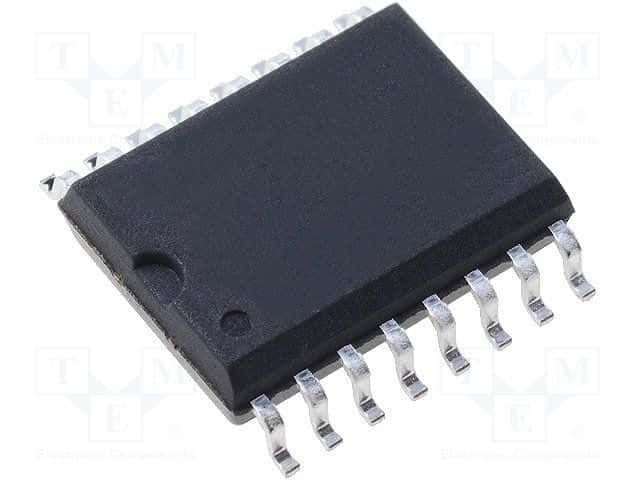

Product Images
