Brushless DC (BLDC) motor driver IC featuring a 56-pin HTSSOP package. Operates from 8V to 60V supply voltage with a maximum output current of 1.7A. Offers a parallel interface and surface mount capability. Designed for a wide operating temperature range from -40°C to 125°C. This RoHS compliant component is supplied in a rail/tube package.
PackageHTSSOP
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8302DCA technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Interface
Parallel
Lead Free
Lead Free
Length
14.1mm
Max Collector Current
1.7A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8V
Motor Type
Brushless DC (BLDC)
Mount
Surface Mount
Number of Outputs
1
Output Current
1.7A
Package Quantity
35
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DRV8302
Supply Current
15mA
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8302DCA Datasheet
Download the complete datasheet for Texas Instruments DRV8302DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

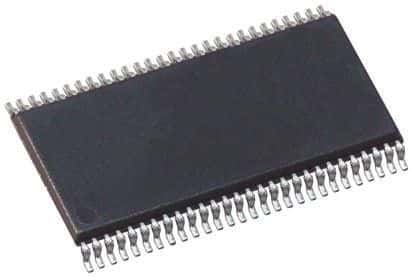

Product Images
