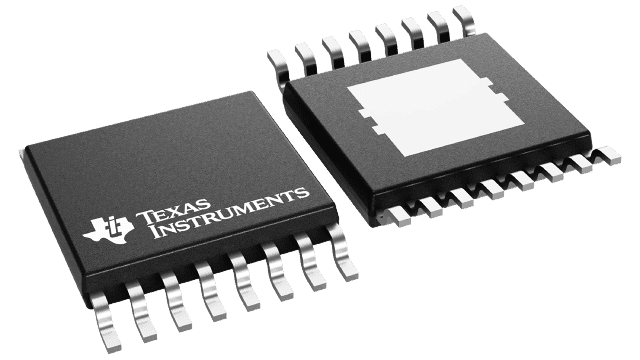

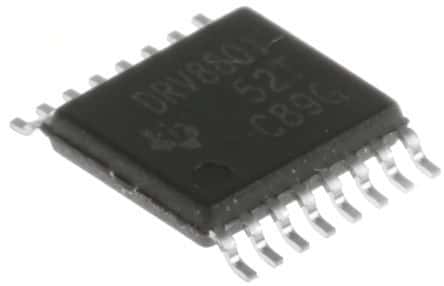

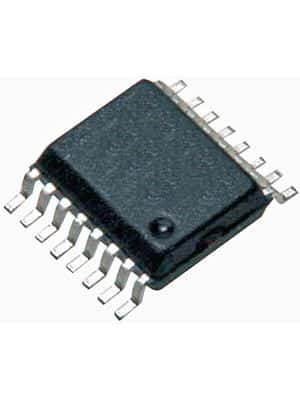

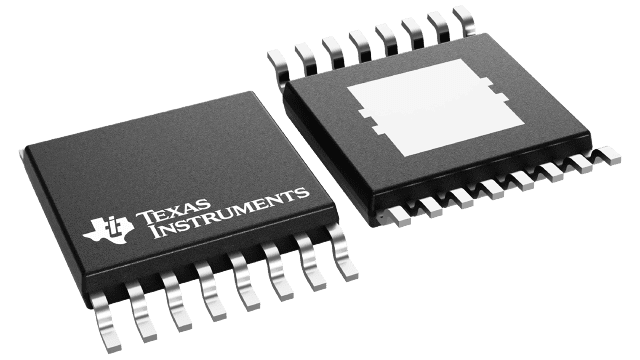

Surface mount h-bridge motor driver with 36V operating supply voltage and 2.8A output current. Features DMOS technology, parallel interface, and brushed motor compatibility. Operates from 8V to 38V supply, with a maximum collector current of 1.8A. Packaged in a 16-HTSSOP, this RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments DRV8801PWP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | HTSSOP |
| Height | 1.05mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Collector Current | 1.8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 38V |
| Min Supply Voltage | 8V |
| Motor Type | Brushed |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 6mA |
| Operating Supply Voltage | 36V |
| Output Current | 2.8A |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Quiescent Current | 3.2mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DRV8801 |
| Technology | DMOS |
| Weight | 0.002212oz |
| Width | 4.5mm |
| RoHS | Compliant |
