Texas Instruments
DRV8804PWP
60-V, 2.3-A, quad low-side motor driver with serial control 16-HTSSOP -40 to 125
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8804PWP technical specifications.
General
Package/Case
HTSSOP
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8.2V
Mount
Surface Mount
Number of Outputs
4
Output Current
1.5A
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8804PWP Datasheet
Download the complete datasheet for Texas Instruments DRV8804PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

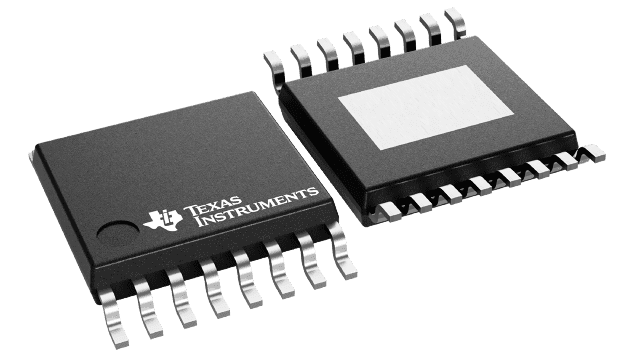

Product Images
