Dual bipolar stepper motor driver IC featuring 1.5A maximum output current per channel and 32V maximum supply voltage. Supports 1/8 microstepping for precise motor control. Operates across a -40°C to 85°C temperature range. Packaged in a 48-pin HTSSOP with dimensions of 12.6mm (L) x 6.2mm (W) x 1.05mm (H). RoHS compliant.
PackageHTSSOP
Current5mA
Quick Jump:
Technical Specifications
Texas Instruments DRV8821DCA technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Lead Free
Lead Free
Length
12.6mm
Max Collector Current
1.5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Supply Voltage
32V
Min Supply Voltage
8V
Motor Type
Stepper
Number of Outputs
4
Output Current
1.5A
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
1A
RoHS Compliant
Yes
Series
DRV8821
Supply Current
5mA
Width
6.2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8821DCA Datasheet
Download the complete datasheet for Texas Instruments DRV8821DCA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

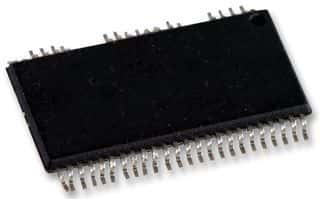

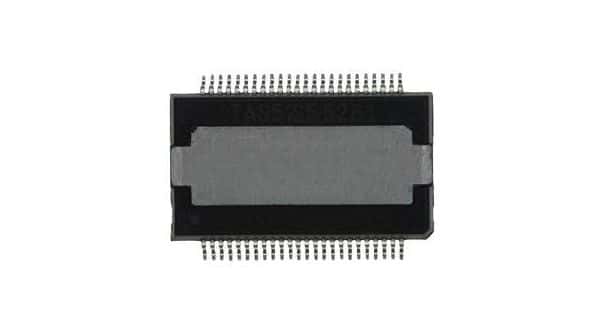

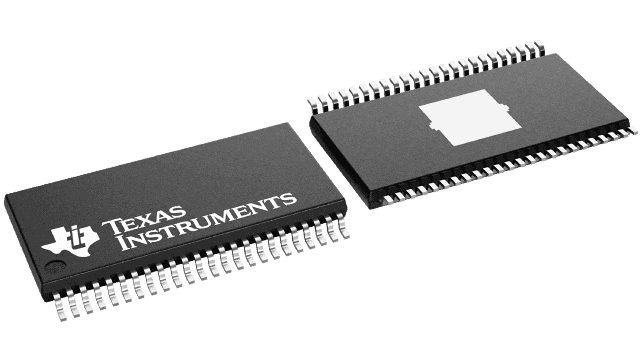

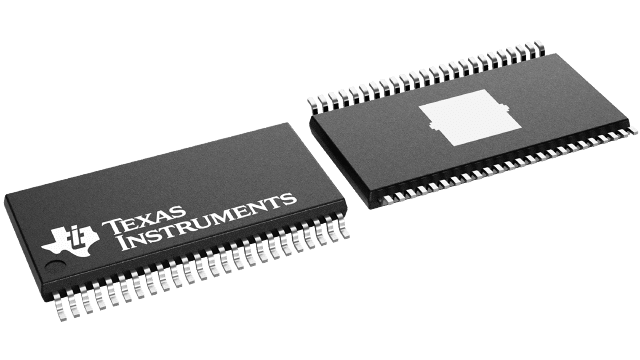

Product Images
