Texas Instruments
DRV8832QDGQQ1
Automotive 6.8-V, 1-A H-bridge motor driver with voltage regulation 10-HVSSOP -40 to 125
PackageHVSSOP
Current1.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8832QDGQQ1 technical specifications.
General
Package/Case
HVSSOP
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
6.8V
Min Supply Voltage
2.75V
Mount
Surface Mount
Number of Outputs
1
Output Current
1A
Output Voltage
1.285V
Package Quantity
80
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Supply Current
1.4mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8832QDGQQ1 Datasheet
Download the complete datasheet for Texas Instruments DRV8832QDGQQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

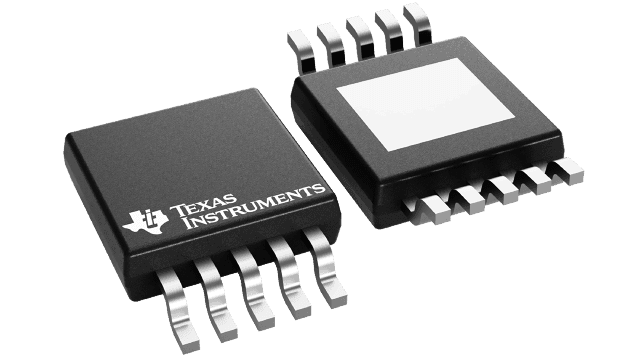

Product Images
