Dual H-bridge motor driver IC for bipolar stepper or DC motors, featuring 45V maximum supply voltage and 1.75A maximum output current per channel. This integrated circuit offers current regulation and PWM control for precise motor operation. The device operates across a wide temperature range from -40°C to 85°C and is housed in a compact 28-pin HTSSOP package for surface mounting. With a parallel interface and RoHS compliance, this motor driver is designed for efficient power management applications.
PackageHTSSOP
Current2.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments DRV8841PWP technical specifications.
General
Package/Case
HTSSOP
Height
1.05mm
Interface
Parallel
Lead Free
Lead Free
Length
9.8mm
Max Collector Current
1.75A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
45V
Min Supply Voltage
8.2V
Motor Type
Stepper
Mount
Surface Mount
Number of Channels
1
Number of Outputs
2
Output Current
1.75A
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
DRV8841
Supply Current
2.5A
Thickness
1mm
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments DRV8841PWP Datasheet
Download the complete datasheet for Texas Instruments DRV8841PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

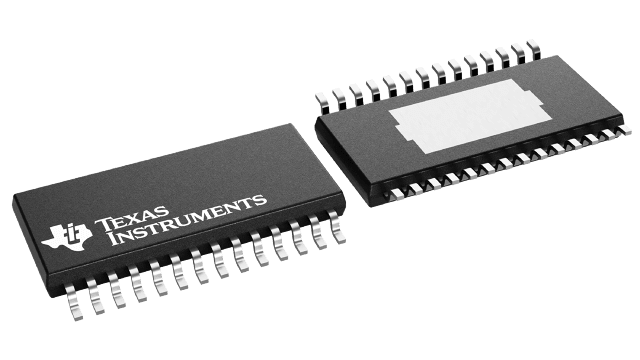

Product Images
