TEXAS INSTRUMENTS

DS26C32ATM

Datasheet

CMOS Quad RS-422 Receiver, 16-SOIC, Diff Schmitt Trigger

Texas Instruments

DS26C32ATM

Name: DS26C32ATM Texas Instruments
Brand: Texas Instruments
SKU: DS26C32ATM

CMOS Quad RS-422 Receiver, 16-SOIC, Diff Schmitt Trigger

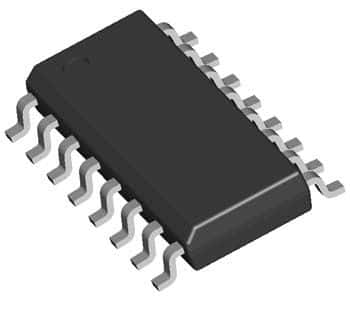

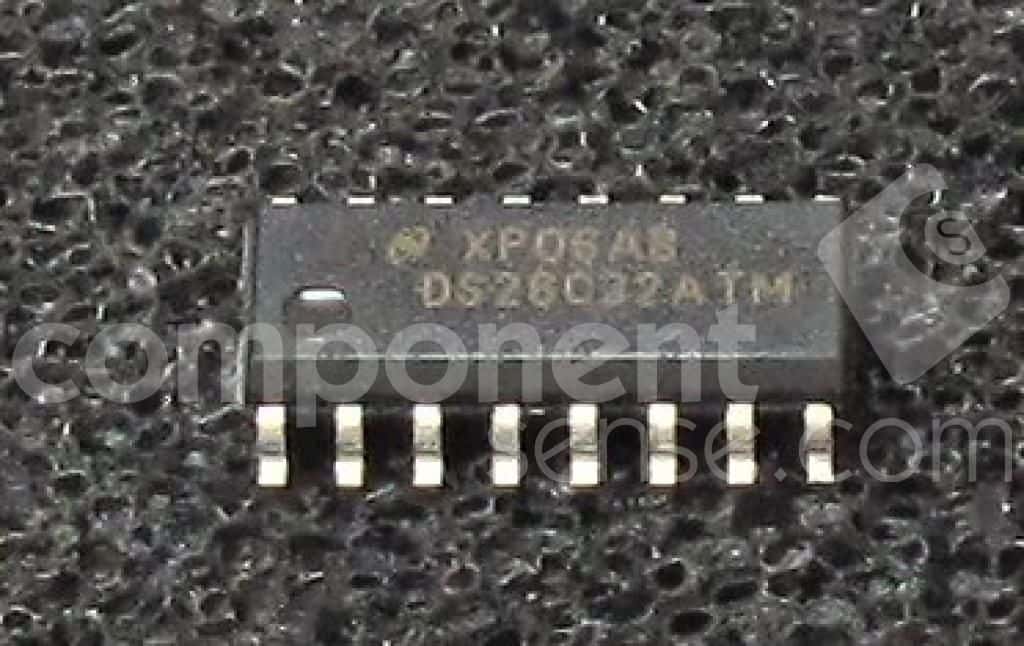

CMOS Quad Differential Line Receiver, designed for RS-422 interfaces, features four independent receivers with Schmitt trigger inputs and 60mV hysteresis. This surface-mount IC operates from a 4.5V to 5.5V supply, with a typical operating supply current of 23mA. It offers integrated ESD protection and is housed in a 16-SOIC package with gull-wing terminals. The component is rated for industrial temperature ranges from -40°C to 85°C.

PackageSOIC

Current Rating25A

MountingSurface Mount

Quick Jump:

Technical Specifications

Texas Instruments DS26C32ATM technical specifications.

General

Package/Case	SOIC
Current Rating	25A
ESD Protection	Yes
Height	1.45mm
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Input Current	1.1mA
Interface	RS-422
JESD-30 Code	R-PDSO-G16
Lead Free	Contains Lead
Length	9.91mm
Logic Function	Receiver
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	4.5V
Moisture Sensitivity Level	1
Mount	Surface Mount
Number of Drivers	4
Number of Functions	4
Number of Receivers	4
Operating Supply Current	23mA
Operating Supply Voltage	5V
Package Body Material	Plastic
Package Code	SOP
Package Quantity	48
Package Shape	Rectangular
Packaging	Rail/Tube
Peak Reflow Temperature (Cel)	235°C
Radiation Hardening	No
Reach SVHC Compliant	No
Receiver Hysteresis	60mV
Receiver Number of Bits	4
RoHS Compliant	No
Surface Mount	Yes
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin
Terminal Form	Gull Wing
Terminal Position	DUAL
Time @ Peak Reflow Temperature-Max (s)	30s
Weight	0.019312oz
Width	3.9mm
