Texas Instruments
DS90LV032AW-MLS
3-V LVDS quad CMOS differential line receiver, space grade 16-CFP -55 to 85
MountingSurface Mount
Power34W
Quick Jump:
Technical Specifications
Texas Instruments DS90LV032AW-MLS technical specifications.
General
Data Rate
400Mbps
Lead Free
Contains Lead
Logic Function
Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Channels
4
Number of Drivers
4
Number of Elements
4
Number of Receivers
4
Operating Supply Voltage
3.3V
Packaging
Rail/Tube
Power Consumption
34W
Power Dissipation
1.025W
Propagation Delay
3.3ns
RoHS Compliant
No
Turn-On Delay Time
3.3ns
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments DS90LV032AW-MLS Datasheet
Download the complete datasheet for Texas Instruments DS90LV032AW-MLS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

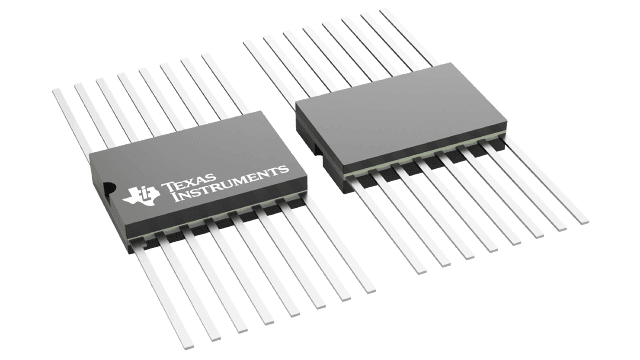

Product Images
