Dual high-speed differential transceiver supporting 400Mbps data rates. Features 2 drivers and 2 receivers for full-duplex communication. Operates with a 3V to 3.6V supply voltage, typically 3.3V. Packaged in a 16-TSSOP for surface mounting, with a wide operating temperature range of -40°C to 85°C. Offers a propagation delay of 3.5ns.
PackageTSSOP
MountingSurface Mount
Power70W
Quick Jump:
Technical Specifications
Texas Instruments DS90LV049TMT technical specifications.
General
Package/Case
TSSOP
Data Rate
400Mbps
Lead Free
Contains Lead
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
866mW
Max Supply Current
35mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
4
Number of Drivers
2
Number of Elements
2
Number of Receivers
2
Operating Supply Voltage
3.3V
Package Quantity
92
Packaging
Rail/Tube
Power Consumption
70W
Power Dissipation
866mW
Propagation Delay
3.5ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Simplex/Duplex
Full Duplex
Turn-On Delay Time
3.5ns
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments DS90LV049TMT Datasheet
Download the complete datasheet for Texas Instruments DS90LV049TMT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

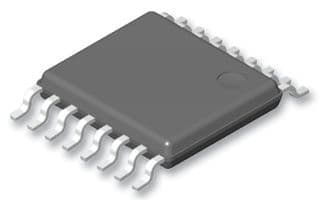

Product Images
