16-bit microcontroller featuring a 30MHz maximum operating frequency and 52 programmable I/O pins. This surface mount device offers 256 bytes of RAM and 8KB of ROM, with an access time of 20µs. Integrated peripherals include PWM and WDT, alongside UART, SPI, and USART interfaces. Operating voltage ranges from 4.5V to 5.5V, with a typical 5V supply. The PLCC package supports external oscillator types and operates between 0°C and 70°C.
Frequency30MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments HPC46003V20 technical specifications.
General
Access Time
20us
Package/Case
PLCC
Data Bus Width
16b
Frequency
30MHz
Interface
UART, SPI, USART
Lead Free
Lead Free
Max Frequency
30MHz
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
8KB
Memory Type
ROM, , ROMless
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of I/Os
52
Number of Programmable I/O
52
Number of Timers/Counters
4
Operating Supply Voltage
5V
Oscillator Type
External
Package Quantity
18
Packaging
Rail/Tube
Peripherals
PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
No
Series
HPC™
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments HPC46003V20 Datasheet
Download the complete datasheet for Texas Instruments HPC46003V20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

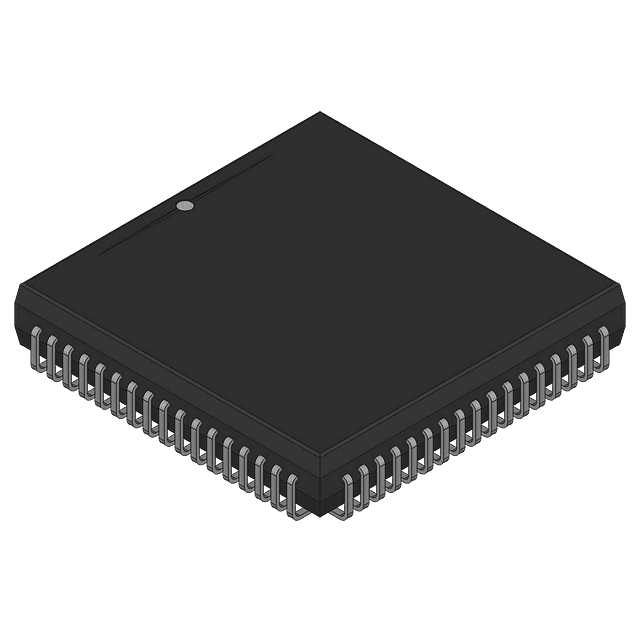

Product Images
