High-accuracy instrumentation amplifier featuring a 25MHz bandwidth and 106dB common-mode rejection ratio. This single-channel amplifier offers a low input bias current of 30nA and an input offset voltage of 25µV. It operates with dual supply voltages from ±5V to ±15V, with a maximum of ±20V, and a single supply range of 10V to 40V. The component is housed in a TO-100 package, providing a 60dB voltage gain and a slew rate of 0.4V/µs.
PackageTO-100
Power600mW
Quick Jump:
Technical Specifications
Texas Instruments INA101SM technical specifications.
General
-3db Bandwidth
300kHz
Amplifier Type
INSTRUMENTATION AMPLIFIER
Bandwidth
25MHz
Package/Case
TO-100
Common Mode Rejection Ratio
106dB
Dual Supply Voltage
15V
Gain Bandwidth Product
300kHz
Height
4.4mm
Input Bias Current
30nA
Input Offset Voltage (Vos)
25uV
Input Resistance
10GR
Lead Free
Lead Free
Length
8.96mm
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
600mW
Max Supply Voltage
40V
Min Supply Voltage
10V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
3
Operating Supply Current
6.7mA
Output Current per Channel
10mA
Package Quantity
20
Packaging
Rail/Tube
Power Dissipation
600mW
Quiescent Current
6.7mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Voltage Gain
60dB
Width
8.96mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA101SM Datasheet
Download the complete datasheet for Texas Instruments INA101SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

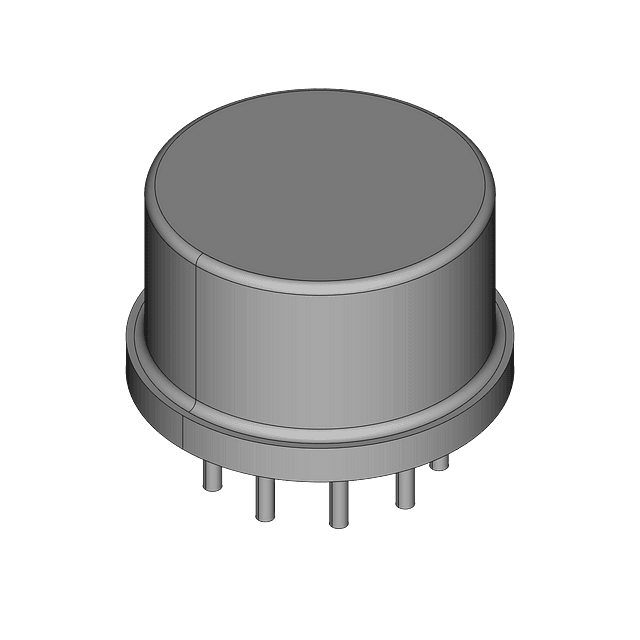

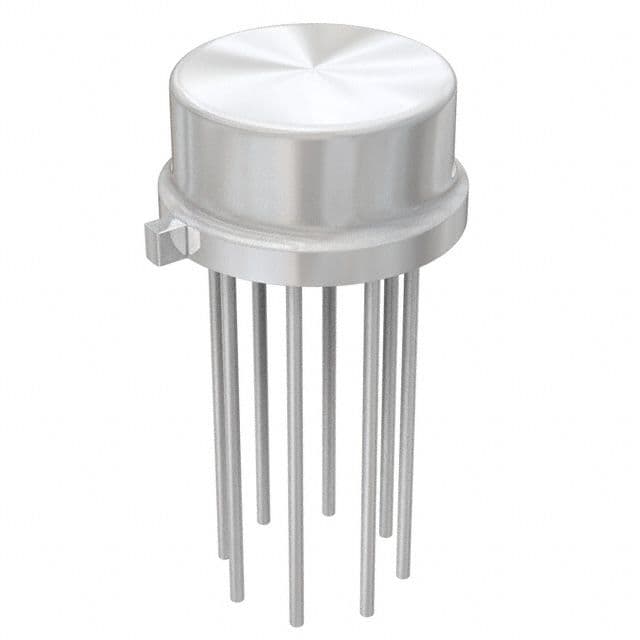

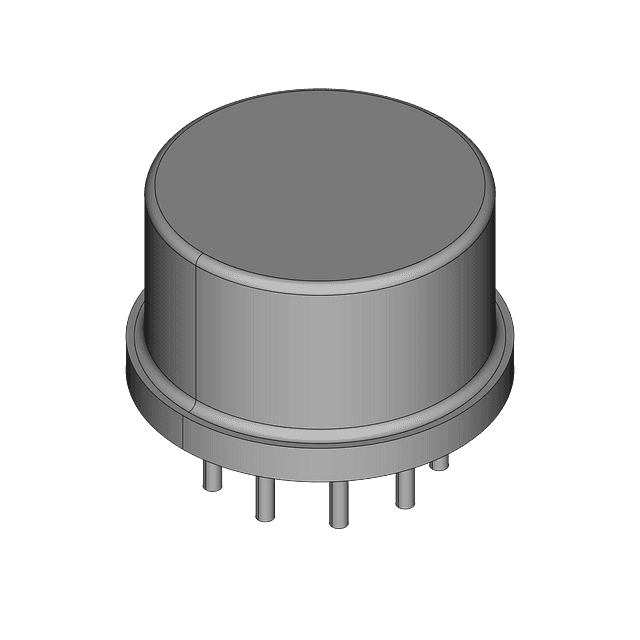

Product Images
