Precision unity gain differential amplifier in a TO-99 package. Features a 1MHz -3dB bandwidth and 80dB common mode rejection ratio. Offers a low input offset voltage of 250µV and 20mA output current per channel. Operates with dual supply voltages from ±5V to ±18V, or single supply from 10V to 36V. Through-hole mount design with a 1.5mA quiescent current.
PackageTO-99
Current2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments INA105AM technical specifications.
General
| -3db Bandwidth | 1MHz |
| Amplifier Type | DIFFERENTIAL |
| Bandwidth | 1MHz |
| Package/Case | TO-99 |
| Common Mode Rejection Ratio | 80dB |
| Dual Supply Voltage | 15V |
| Input Offset Voltage (Vos) | 250uV |
| Input Resistance | 50kR |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 5V |
| Max Input Voltage | 20V |
| Min Input Voltage | -20V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 10V |
| Mount | Through Hole |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 1.5mA |
| Output Current per Channel | 20mA |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Quiescent Current | 1.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 3V/µs |
| Supply Current | 2mA |
| Voltage Gain | 0dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments INA105AM Datasheet
Download the complete datasheet for Texas Instruments INA105AM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

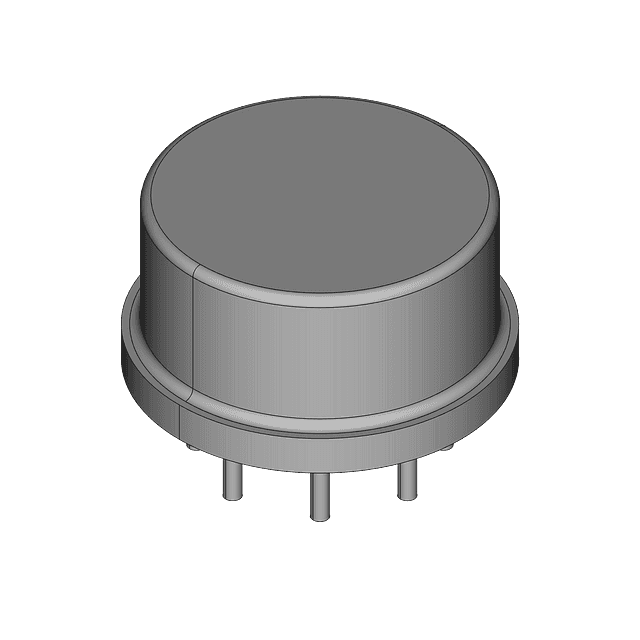

Product Images
