Bi-directional current sense amplifier featuring a 26V maximum supply voltage and 1.5% accuracy. This single-channel IC offers a 150µV input offset voltage and a 100dB common mode rejection ratio. Operating from a 2.5V to 26V supply, it has a 14kHz gain bandwidth product and a 0.4V/µs slew rate. Packaged in a 6-pin SOT-23, this surface-mount component operates from -40°C to 125°C.
PackageSOT-23-6
Current115uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA199B3DCKR technical specifications.
General
Accuracy
1.5%
Package/Case
SOT-23-6
Common Mode Rejection Ratio
100dB
Gain Bandwidth Product
14kHz
Height
1.1mm
Input Bias Current
28uA
Input Offset Voltage (Vos)
150uV
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
26V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
65uA
Package Quantity
3000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
140dB
RoHS Compliant
Yes
Series
Zero-Drift
Slew Rate
0.4V/µs
Supply Current
115uA
Thickness
900um
Unity Gain Bandwidth Product
14kHz
Voltage Gain
46.02dB
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA199B3DCKR Datasheet
Download the complete datasheet for Texas Instruments INA199B3DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

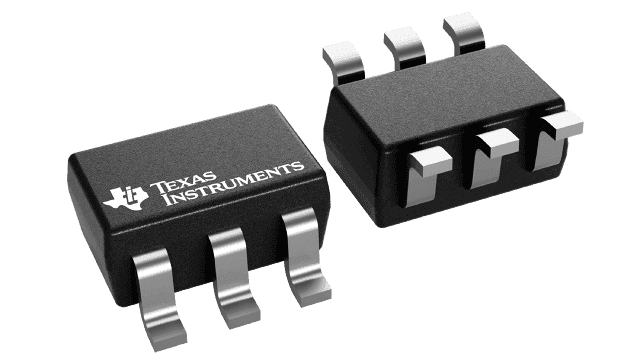

Product Images
