Texas Instruments
INA200AIDGKT
-16 to 80V, 500kHz current sense amplifier w/ comparator 8-VSSOP -40 to 125
PackageMSOP
Current1.35mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA200AIDGKT technical specifications.
General
Accuracy
3.5%
Bandwidth
500kHz
Package/Case
MSOP
Common Mode Rejection Ratio
100dB
Input Bias Current
16uA
Input Offset Voltage (Vos)
2.5mV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Operating Supply Current
1.85mA
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1V/µs
Supply Current
1.35mA
Termination
SMD/SMT
Weight
0.000935oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA200AIDGKT Datasheet
Download the complete datasheet for Texas Instruments INA200AIDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

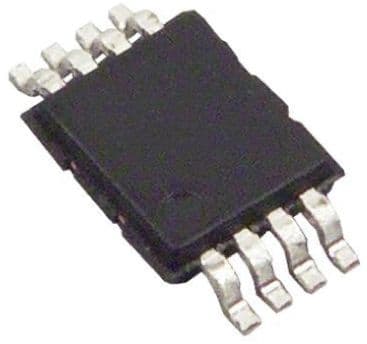

Product Images
