PackageN
Current2.4mA
Quick Jump:
Technical Specifications
Texas Instruments INA2134PAG4 technical specifications.
General
Package/Case
N
Common Mode Rejection Ratio
74dB
Input Offset Voltage (Vos)
1mV
Input Resistance
50kR
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
8V
Number of Channels
2
Number of Elements
2
Operating Supply Voltage
18V
Package Quantity
25
Packaging
Rail/Tube
Quiescent Current
2.4mA
RoHS Compliant
Yes
Series
INA2134
Slew Rate
14V/µs
Supply Current
2.4mA
Voltage Gain
0dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA2134PAG4 Datasheet
Download the complete datasheet for Texas Instruments INA2134PAG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

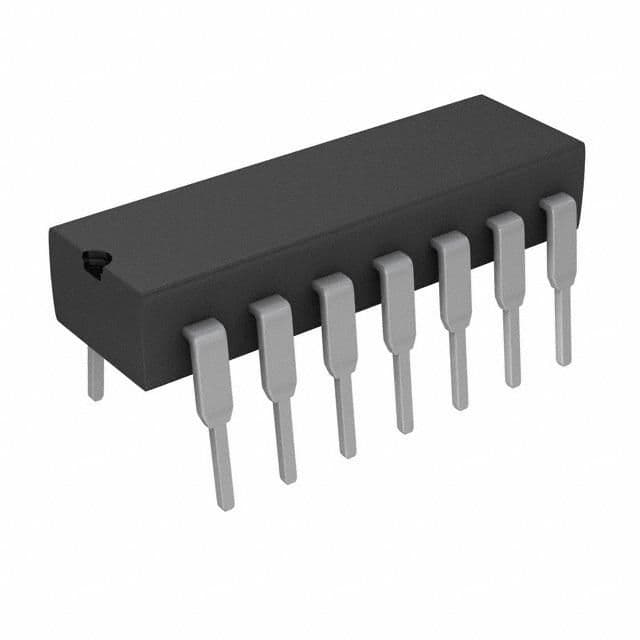

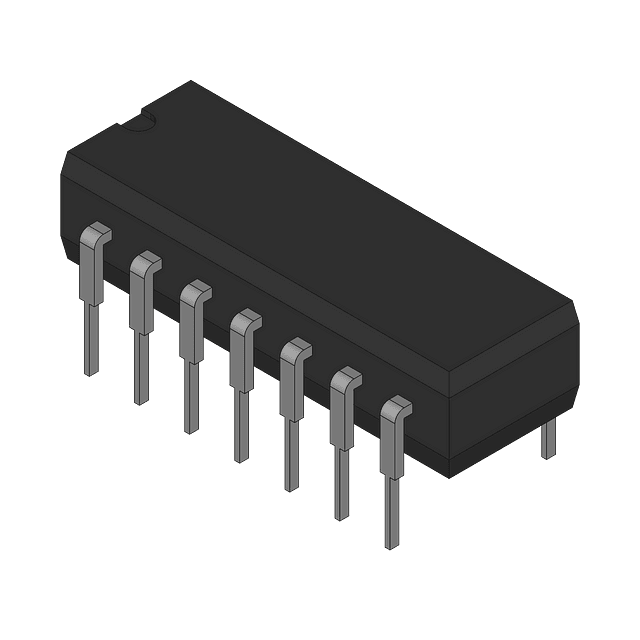

Product Images
