High-precision, bi-directional current sense amplifier with a 26V maximum supply voltage, designed for surface mount applications. Features 1% accuracy, 100dB Common Mode Rejection Ratio, and 140dB Power Supply Rejection Ratio. Operates across a -40°C to 125°C temperature range with a low input offset voltage of 100µV and a maximum supply current of 100µA. This single-channel operational amplifier offers a gain bandwidth product of 80kHz and a slew rate of 0.4V/µs, packaged in a compact 1.85mm x 1.45mm x 0.5mm UQFN.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA213AIRSWT technical specifications.
General
Accuracy
1%
Common Mode Rejection Ratio
100dB
Gain Bandwidth Product
80kHz
Height
0.5mm
Input Bias Current
28uA
Input Offset Voltage (Vos)
100uV
Lead Free
Lead Free
Length
1.85mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
100uA
Max Supply Voltage
26V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
65uA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
140dB
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Unity Gain Bandwidth Product
14kHz
Voltage Gain
33.98dB
Weight
0.000215oz
Width
1.45mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA213AIRSWT Datasheet
Download the complete datasheet for Texas Instruments INA213AIRSWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

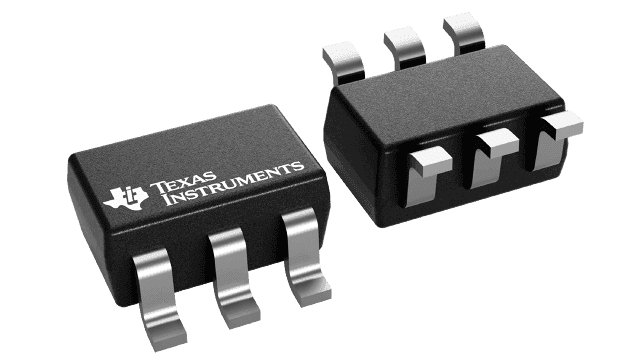

Product Images
