Texas Instruments
INA214BIRSWR
26V, bi-directional, high-precision current sense amplifier 10-UQFN -40 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA214BIRSWR technical specifications.
General
Accuracy
1%
Gain Bandwidth Product
14kHz
Height
550um
Input Bias Current
28uA
Input Offset Voltage (Vos)
1uV
Lead Free
Lead Free
Length
1.8mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Current
65uA
Package Quantity
3000
Packaging
Cut Tape
RoHS Compliant
Yes
Series
Zero-Drift
Slew Rate
0.4V/µs
Thickness
450um
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA214BIRSWR Datasheet
Download the complete datasheet for Texas Instruments INA214BIRSWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

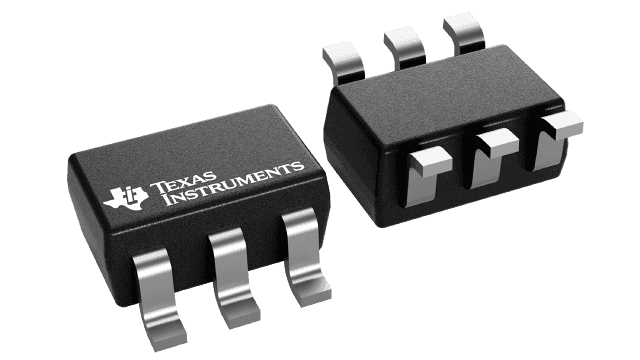

Product Images
