High-precision, bi-directional current sense amplifier for demanding applications. Features a wide operating supply voltage range of 2.7V to 26V and a low input offset voltage of 1µV. This single-circuit operational amplifier offers a 40kHz gain bandwidth product and a 0.4V/µs slew rate. Packaged in a compact SOT-363 (SC-70) surface-mount format, it operates from -40°C to 125°C and is RoHS compliant.
PackageSOT-363
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA215AIDCKR technical specifications.
General
Package/Case
SOT-363
Gain Bandwidth Product
40kHz
Input Bias Current
28uA
Input Offset Voltage (Vos)
1uV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
26V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
1
Operating Supply Current
65uA
Packaging
Tape and Reel
RoHS Compliant
Yes
Slew Rate
0.4V/µs
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA215AIDCKR Datasheet
Download the complete datasheet for Texas Instruments INA215AIDCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

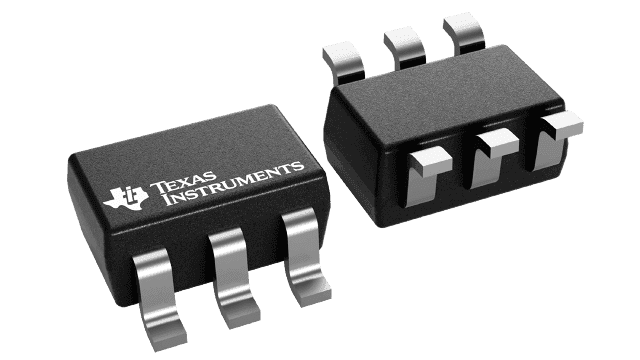

Product Images
