Texas Instruments
INA216A4RSWT
1.8 to 5.5V, high-precision current sense amplifier in wcsp 10-UQFN -40 to 125
Current30uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA216A4RSWT technical specifications.
General
Accuracy
0.03%
Common Mode Rejection Ratio
90dB
Input Offset Voltage (Vos)
75uV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
90dB
RoHS Compliant
Yes
Series
Zero-Drift
Supply Current
30uA
Voltage Gain
46.02dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA216A4RSWT Datasheet
Download the complete datasheet for Texas Instruments INA216A4RSWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

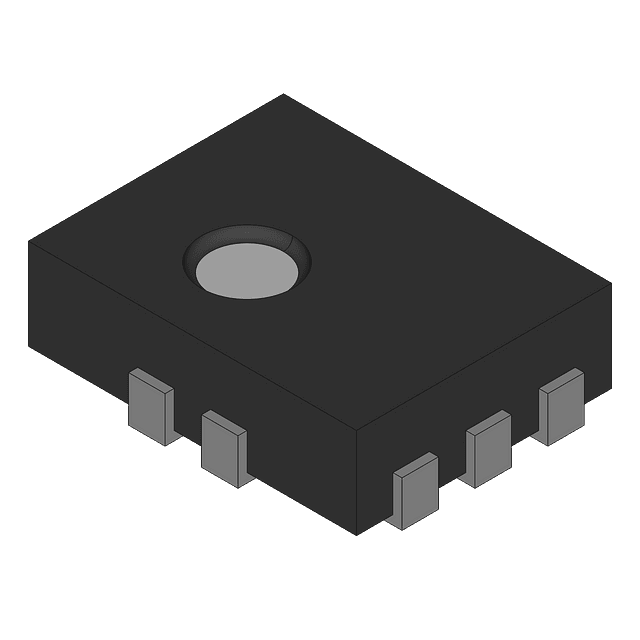

Product Images
