High-precision digital current and voltage monitor with I²C interface. Features a 1% accuracy, 3.4MHz bandwidth, and a wide operating voltage range of 3V to 5.5V, with a maximum input voltage of 26V. This single-amplifier integrated circuit is housed in a compact SOT-23-8 package, offering a 100dB common mode rejection ratio and a low input offset voltage of 100µV. Operating with a typical supply current of 1mA, it is RoHS compliant and suitable for temperatures from -40°C to 125°C.
PackageSOT-23-8
Current700uA
Quick Jump:
Technical Specifications
Texas Instruments INA219AIDCNR technical specifications.
General
Accuracy
1%
Bandwidth
3.4MHz
Package/Case
SOT-23-8
Common Mode Rejection Ratio
100dB
Features
I²C
Height
1.3mm
Input Offset Voltage (Vos)
100uV
Lead Free
Lead Free
Length
3mm
Max Input Voltage
26V
Min Input Voltage
0V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
5mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Number of Amplifiers
1
Operating Supply Current
1mA
Output Current
10mA
Output Current per Channel
10mA
Output Type
Digital
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
700uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Zero-Drift
Supply Current
700uA
Weight
0.001411oz
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA219AIDCNR Datasheet
Download the complete datasheet for Texas Instruments INA219AIDCNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

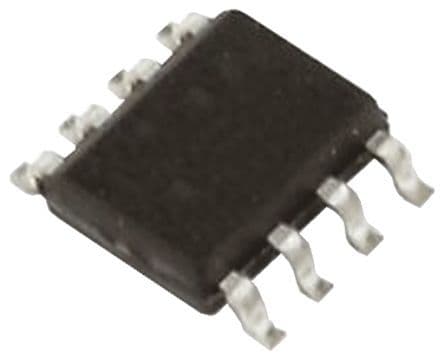

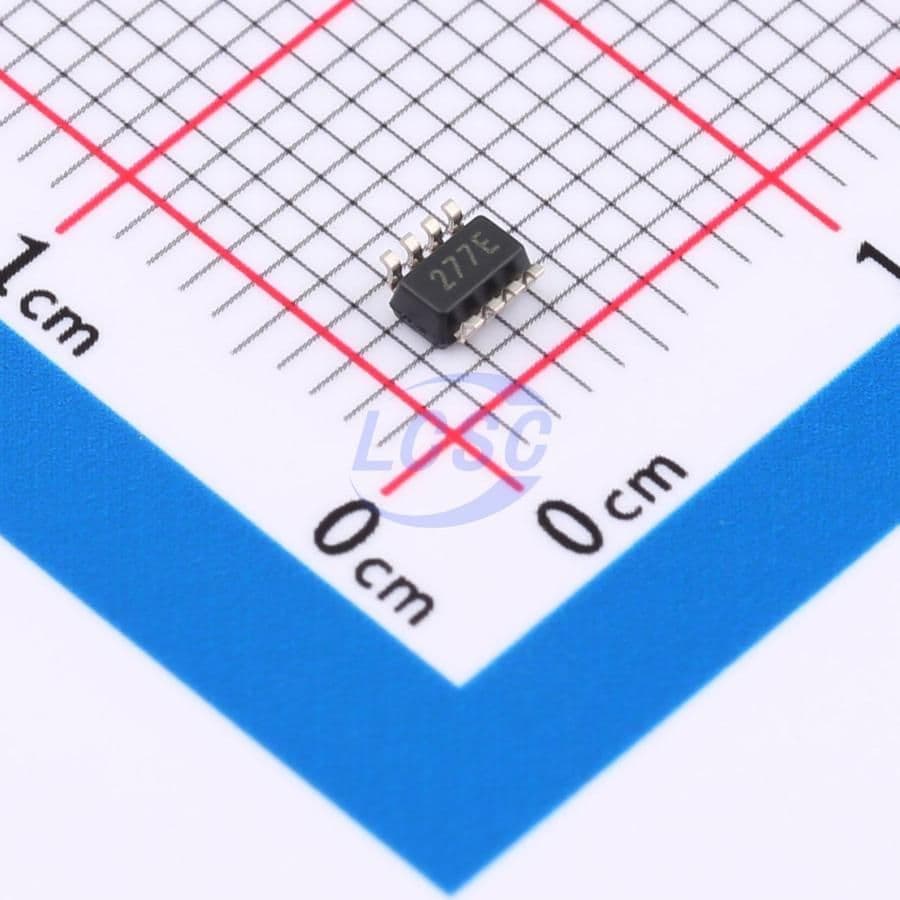

Product Images
