Texas Instruments
INA223AIDSKT
Programmable Gain Current Sense Amp, Analog Power Monitor, 25kHz, 100dB CMRR, SON
Programmable-gain current sense amplifier and analog power monitor featuring a 25kHz bandwidth and 100dB common mode rejection ratio. This single operational amplifier operates from a 2.7V to 5.5V supply, with a maximum supply current of 250uA. It offers a low input offset voltage of 100uV and an input bias current of 18uA, suitable for operation between -40°C and 105°C. The surface mount component is provided in a 10-SON package, measuring 2.6mm in length and width with a height of 0.75mm.
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA223AIDSKT technical specifications.
General
Bandwidth
25kHz
Package/Case
SON
Common Mode Rejection Ratio
100dB
Gain Bandwidth Product
25kHz
Height
0.75mm
Input Bias Current
18uA
Input Offset Voltage (Vos)
100uV
Lead Free
Lead Free
Length
2.6mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Current
250uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Operating Supply Current
250uA
Output Voltage
1.5V
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Zero-Drift
Width
2.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA223AIDSKT Datasheet
Download the complete datasheet for Texas Instruments INA223AIDSKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

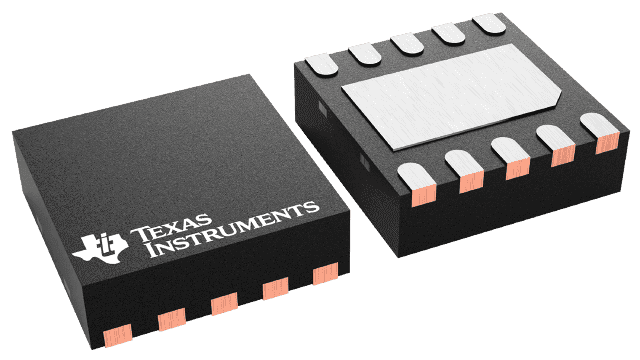

Product Images
