Bi-directional current sense amplifier with a 36V maximum input and supply voltage. Features four pin-selectable gain settings, a 250kHz bandwidth, and a 250kHz gain bandwidth product. Offers a 105dB common mode rejection ratio and a 75µV input offset voltage. Operates within a -40°C to 125°C temperature range and is available in a lead-free, surface-mount 8-VSSOP package.
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments INA225AIDGKT technical specifications.
General
Bandwidth
250kHz
Package/Case
VSSOP
Common Mode Rejection Ratio
105dB
Gain Bandwidth Product
250kHz
Height
0.95mm
Input Bias Current
72uA
Input Offset Voltage (Vos)
75uV
Lead Free
Lead Free
Length
3.1mm
Max Input Voltage
36V
Min Input Voltage
0V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Packaging
Cut Tape
Quiescent Current
350uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Zero-Drift
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA225AIDGKT Datasheet
Download the complete datasheet for Texas Instruments INA225AIDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

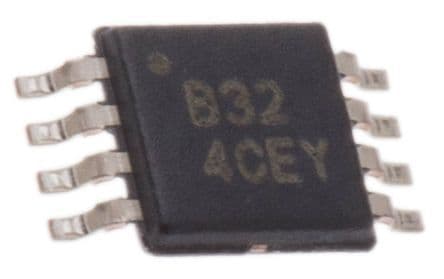

Product Images
