High-precision, 1-channel supervisory circuit for monitoring voltages from 2.7V to 5.5V. Features 0.25% accuracy, 80µV input offset voltage, and 110dB common mode rejection ratio. Operates across a -40°C to 125°C temperature range with a 350µA quiescent current. Packaged in a 16-pin VQFN, supplied on tape and reel.
PackageVQFN
Current350uA
Quick Jump:
Technical Specifications
Texas Instruments INA3221AIRGVR technical specifications.
General
Accuracy
0.25%
Package/Case
VQFN
Common Mode Rejection Ratio
110dB
Gain Bandwidth Product
7kHz
Input Offset Voltage (Vos)
80uV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Channels
1
Number of Elements
1
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
96.48dB
Quiescent Current
350uA
RoHS Compliant
Yes
Supply Current
350uA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments INA3221AIRGVR Datasheet
Download the complete datasheet for Texas Instruments INA3221AIRGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

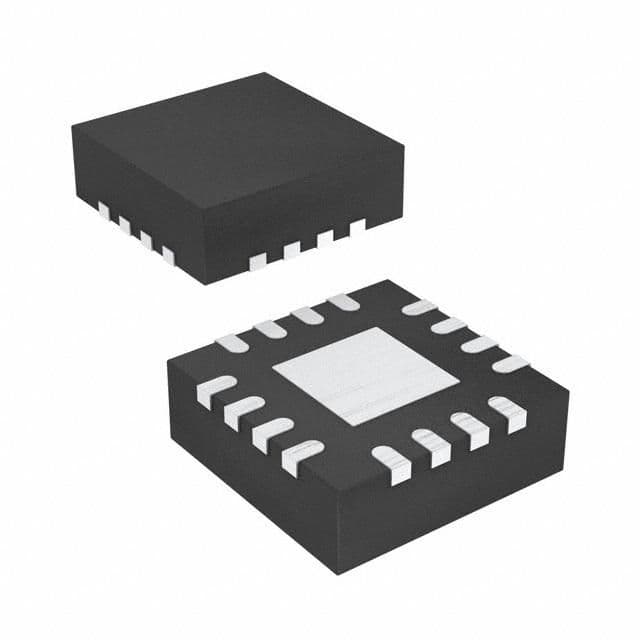

Product Images
