High-performance isolation amplifier featuring a 70kHz bandwidth and 1500V isolation rating. This single-channel, through-hole component offers a 70mV input offset voltage and 100kΩ input resistance. Operates with dual supply voltages from ±10V to ±20V, drawing 25mA typical supply current. Housed in a hermetically sealed CDIP package with a 0.5V/µs slew rate and 0dB voltage gain.
PackageCDIP
Current33mA
MountingThrough Hole
Power800mW
Quick Jump:
Technical Specifications
Texas Instruments ISO102 technical specifications.
General
-3db Bandwidth
70kHz
Amplifier Type
ISOLATION
Package/Case
CDIP
Dual Supply Voltage
18V
Height
2.35mm
Input Offset Voltage (Vos)
70mV
Input Resistance
100kR
Lead Free
Contains Lead
Length
30.48mm
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
10V
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
800mW
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
25mA
Output Current per Channel
5mA
Package Quantity
1
Packaging
Rail/Tube
Power Dissipation
800mW
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
33mA
Voltage Gain
0dB
Width
15.11mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO102 Datasheet
Download the complete datasheet for Texas Instruments ISO102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

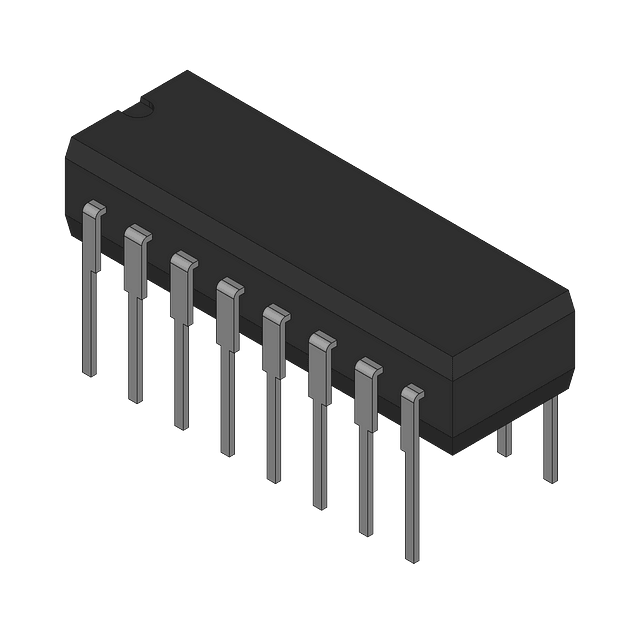

Product Images
