The ISO103B is a single-channel isolation amplifier with a -3db bandwidth of 20kHz and an operating supply current of 90mA. It is available in a CDIP package and is suitable for through-hole mounting. The amplifier is RoHS compliant and has a maximum operating temperature of 85°C and a minimum operating temperature of -25°C. It features an isolation voltage of 2.121kV and an input offset voltage of 20mV. The amplifier has a slew rate of 1.5V/µs.
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments ISO103B technical specifications.
General
| -3db Bandwidth | 20kHz |
| Amplifier Type | ISOLATION |
| Package/Case | CDIP |
| Input Offset Voltage (Vos) | 20mV |
| Isolation Voltage | 2.121kV |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 90mA |
| Output Current per Channel | 15mA |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Slew Rate | 1.5V/µs |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ISO103B Datasheet
Download the complete datasheet for Texas Instruments ISO103B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

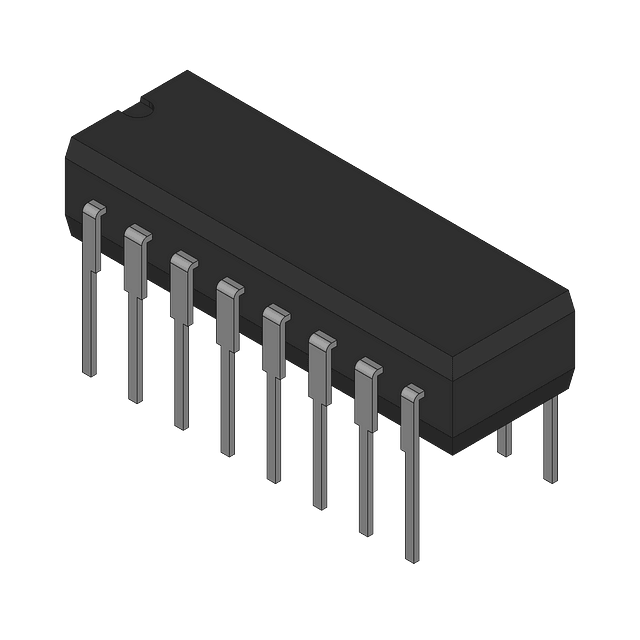

Product Images
