Isolated 5-V CAN transceiver, 1Mbps data rate, 74ns propagation delay. Features differential input, 1 channel, 1 driver, and 1 transceiver. Operates from a 3V to 5.5V supply voltage with a 5V nominal supply. Packaged in an 8-SOP with dimensions of 9.55mm length, 6.67mm width, and 3.35mm height. Operating temperature range from -55°C to 105°C. RoHS compliant and lead-free.
PackageSOP
Current1.8mA
Voltage Rating1.2V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO1050DUB technical specifications.
General
| Package/Case | SOP |
| Data Rate | 1Mbps |
| Height | 3.35mm |
| Input Type | DIFFERENTIAL |
| Lead Free | Lead Free |
| Length | 9.55mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Supply Current | 73mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Channels | 1 |
| Number of Drivers | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 52mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Unidirectional |
| Propagation Delay | 74ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 1.8mA |
| Weight | 0.030018oz |
| Width | 6.67mm |
| Working Voltage | 1.2V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments ISO1050DUB Datasheet
Download the complete datasheet for Texas Instruments ISO1050DUB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

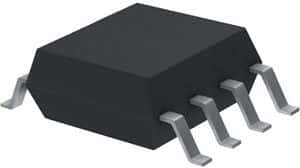

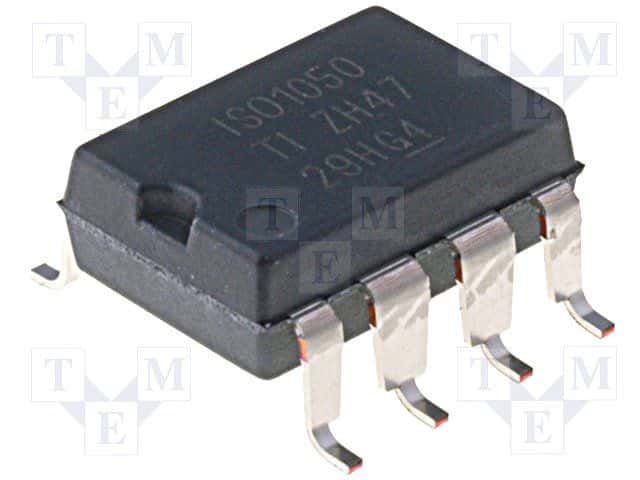

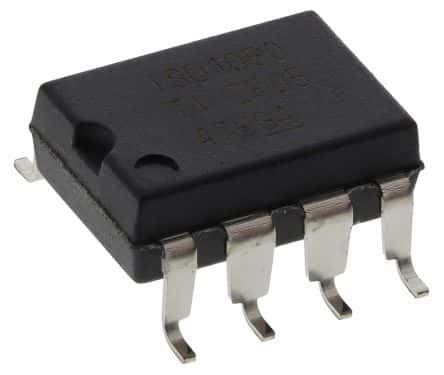

Product Images
