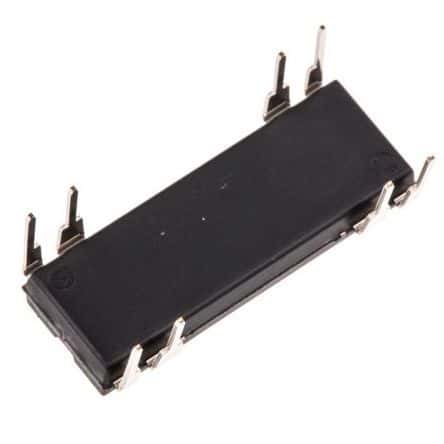

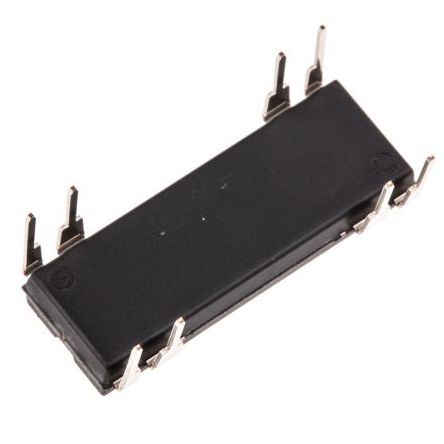

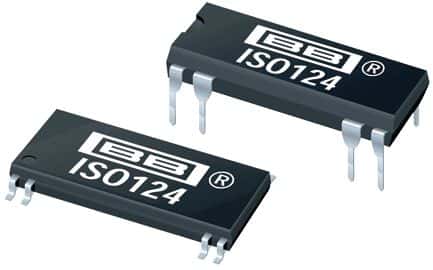

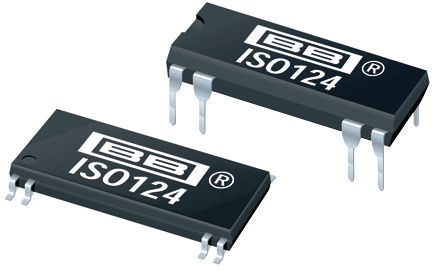

1.5kV isolated amplifier with a ±10V input range, featuring a 50kHz -3dB bandwidth and 140dB common mode rejection ratio. This single-channel isolation amplifier operates with a dual supply voltage range of 4.5V to 18V, drawing 5mA of supply current. Housed in an 8-PDIP package, it offers a 200kΩ input resistance and a slew rate of 2V/µs. Operating temperature range is -25°C to 85°C, with RoHS compliance.
PackagePDIP
Current5.5mA
Quick Jump:
Technical Specifications
Texas Instruments ISO122P technical specifications.
General
-3db Bandwidth
50kHz
Amplifier Type
ISOLATION
Bandwidth
50kHz
Package/Case
PDIP
Common Mode Rejection Ratio
140dB
Dual Supply Voltage
9V
Height
3.94mm
Input Offset Voltage (Vos)
20mV
Input Resistance
200kR
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
20.01mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
18V
Min Supply Voltage
4.5V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
5mA
Output Current per Channel
15mA
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
2V/µs
Supply Current
5.5mA
Voltage Gain
0dB
Weight
0.032805oz
Width
6.61mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO122P Datasheet
Download the complete datasheet for Texas Instruments ISO122P to view detailed technical specifications.
