Quad-channel digital isolator, 50 Mbps data rate, 2.5 kV isolation voltage. Features unidirectional channels, 35 ns propagation delay, and 3 ns pulse width distortion. Operates from a 2.7V to 5V supply voltage with a maximum operating temperature of 125°C. Packaged in a 16-SSOP, this lead-free and RoHS compliant component offers general-purpose isolation.
PackageSSOP
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO7140CCDBQ technical specifications.
General
Package/Case
SSOP
Channel Type
Unidirectional
Data Rate
50Mbps
Isolated Power
No
Isolation Voltage
2.5kV
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
150mW
Max Supply Voltage
5V
Min Supply Voltage
2.7V
Number of Channels
4
Operating Supply Current
15.6mA
Package Quantity
75
Packaging
Rail/Tube
Polarity
Unidirectional
Propagation Delay
35ns
Pulse Width Distortion (PWD)
3ns
RoHS Compliant
Yes
Turn-On Delay Time
23ns
Type
General Purpose
Weight
0.004586oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO7140CCDBQ Datasheet
Download the complete datasheet for Texas Instruments ISO7140CCDBQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

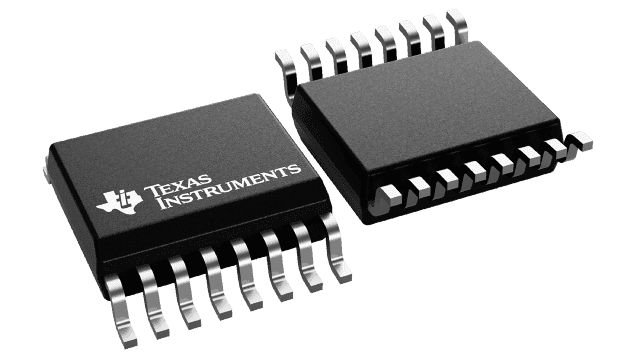

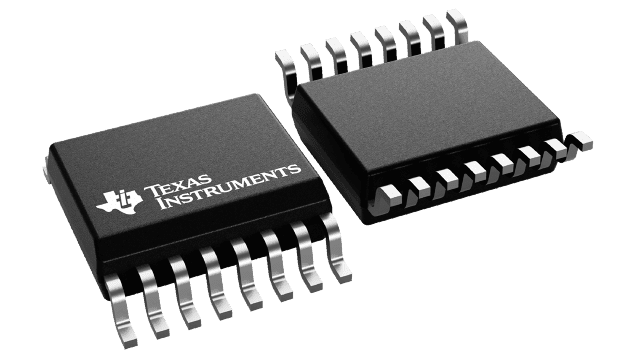

Product Images
