PackageSSOP
Quick Jump:
Technical Specifications
Texas Instruments ISO7140CCDBQR technical specifications.
General
Package/Case
SSOP
Channel Type
Unidirectional
Data Rate
50Mbps
Height
1.75mm
Isolated Power
No
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
2.7V
Number of Channels
4
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
35ns
Pulse Width Distortion (PWD)
3ns
RoHS Compliant
Yes
Thickness
1.5mm
Turn-On Delay Time
23ns
Type
General Purpose
Weight
0.004586oz
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO7140CCDBQR Datasheet
Download the complete datasheet for Texas Instruments ISO7140CCDBQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

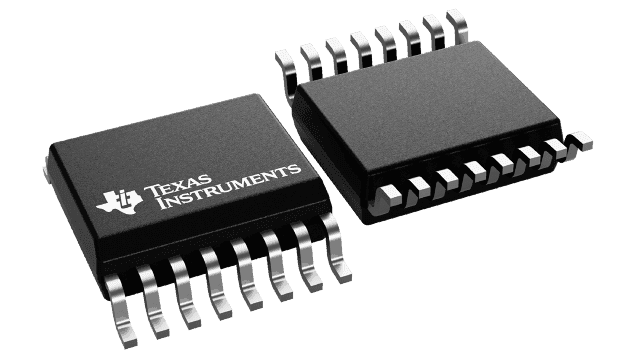

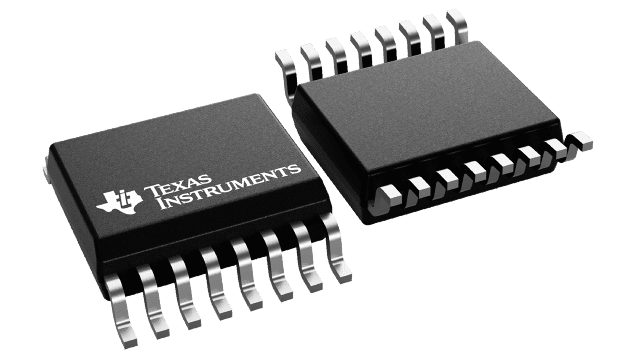

Product Images
