Quad-channel digital isolator, 25Mbps data rate, unidirectional signal flow. Features a 16-SOIC package with a 2.65mm height and 2.35mm thickness. Operates from a 3.15V to 5.5V supply voltage, with a maximum power dissipation of 220mW. Offers a propagation delay of 56ns and a turn-on delay time of 46ns. Suitable for general-purpose interface applications, operating within a temperature range of -40°C to 125°C. RoHS compliant and lead-free.
PackageSOIC
Current17mA
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments ISO7240CFDW technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
25Mbps
Height
2.65mm
Isolated Power
No
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
220mW
Max Supply Voltage
5.5V
Min Supply Voltage
3.15V
Number of Channels
4
Operating Supply Current
7mA
Package Quantity
40
Packaging
Rail/Tube
Polarity
Unidirectional
Propagation Delay
56ns
Pulse Width Distortion (PWD)
2.5ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
17mA
Thickness
2.35mm
Turn-On Delay Time
46ns
Type
General Purpose
Weight
0.014829oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments ISO7240CFDW Datasheet
Download the complete datasheet for Texas Instruments ISO7240CFDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

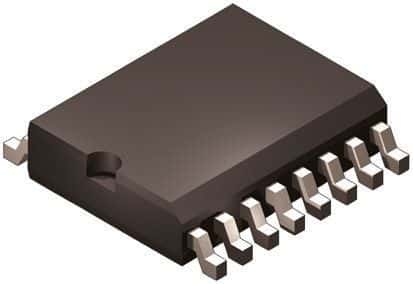

Product Images
