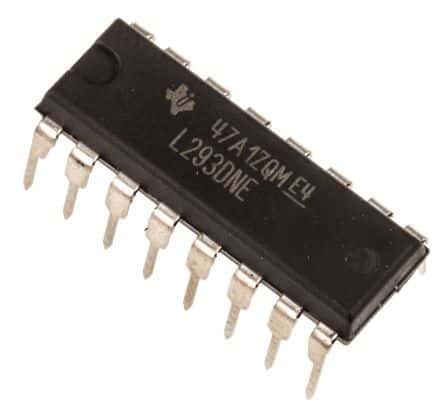

The L293DNE is a 4-channel motor driver IC from Texas Instruments, designed to operate at a maximum supply voltage of 36V and a minimum supply voltage of 4.5V. It can handle an output current of up to 600mA and has a maximum operating temperature of 70°C. The device is packaged in a lead-free PDIP package and is suitable for through-hole mounting. It is also RoHS compliant and features a bipolar technology.
Sign in to ask questions about the Texas Instruments L293DNE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Height | 4.57mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 19.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Operating Supply Current | 24mA |
| Output Current | 600mA |
| Output Voltage | 36V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Technology | BIPOLAR |
| Weight | 0.03357oz |
| Width | 6.35mm |
| RoHS | Compliant |
