Dual JFET-input operational amplifier, featuring a 3MHz gain bandwidth product and 13V/µs slew rate. This surface mount device offers 2 channels, 10mV input offset voltage, and 200pA input bias current. Operates with dual supply voltages from 3.5V to 18V, with a maximum operating temperature of 70°C. RoHS compliant and constructed with BIFET technology.
PackageSOIC
Voltage15V
Current6.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LF353D technical specifications.
General
Bandwidth
3MHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Dual Supply Voltage
9V
Gain Bandwidth Product
3MHz
Height
1.58mm
Input Bias Current
200pA
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
3.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
3.6mA
Operating Supply Voltage
18V
Package Quantity
75
Packaging
Rail/Tube
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
13V/µs
Supply Current
6.5mA
Technology
BIFET
Unity Gain Bandwidth Product
3MHz
Voltage
15V
Voltage Gain
100dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LF353D Datasheet
Download the complete datasheet for Texas Instruments LF353D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

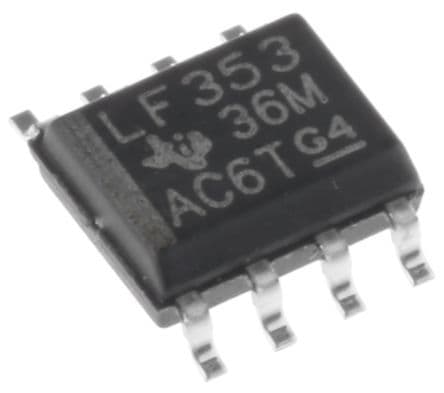

Product Images
