Dual low-power JFET input operational amplifier featuring a 1MHz gain bandwidth product and 1mV input offset voltage. This dual operational amplifier offers 80dB common mode rejection ratio and 80dB power supply rejection ratio. Operating with a dual supply voltage range of 3V to 22V, it provides a 1V/µs slew rate and 6.8mA output current. Housed in a TO-99 package for through-hole mounting, this component operates across a wide temperature range of -55°C to 125°C.
PackageTO-99
Current300uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LF442AMH technical specifications.
General
Package/Case
TO-99
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
1MHz
Input Bias Current
50pA
Input Offset Voltage (Vos)
1mV
Lead Free
Contains Lead
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
300uA
Operating Supply Voltage
22V
Output Current
6.8mA
Package Quantity
500
Packaging
Bulk
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
RoHS Compliant
No
Series
BI-FET II™
Slew Rate
1V/µs
Supply Current
300uA
Technology
BIFET
Unity Gain Bandwidth Product
1MHz
Voltage Gain
106.02dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LF442AMH Datasheet
Download the complete datasheet for Texas Instruments LF442AMH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

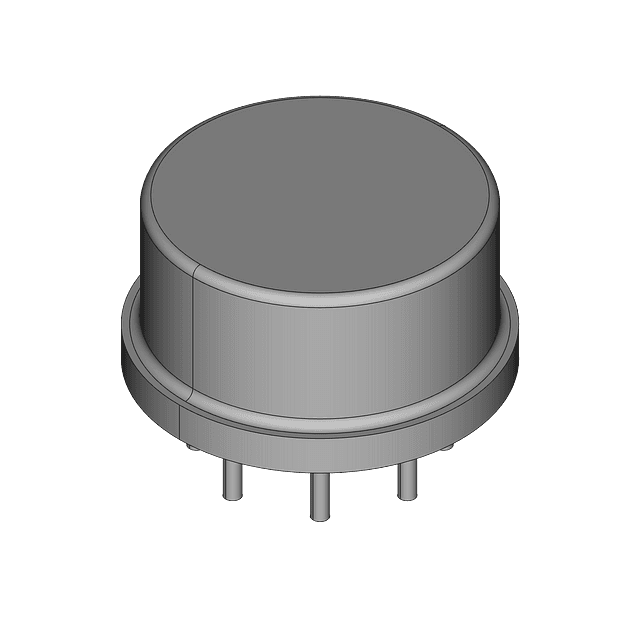

Product Images
