Positive fixed output linear voltage regulator, 3.3V nominal output, 5A maximum output current. Features a 1.3V dropout voltage and a maximum input voltage of 27V. Operates across a -40°C to 125°C temperature range. Packaged in a TO-263 surface-mount case with dimensions of 10.16mm length, 8.64mm width, and 4.57mm height. RoHS compliant.
PackageTO-263
Current Rating5A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1084IS-3.3/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
5A
Dropout Voltage
1.3V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Min Current Limit
5.5A
Max Input Voltage
27V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Power Dissipation
30W
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
30kW
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1084IS-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1084IS-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

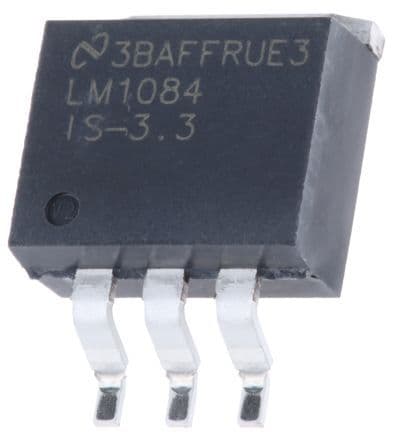

Product Images
