5A fixed positive linear voltage regulator with a 5V output. Features a 1.3V dropout voltage and a maximum input voltage of 25V. This surface mount component operates from -40°C to 125°C and offers a 30W power dissipation. Packaged in a TO-263 case, it supports a minimum input voltage of 2.6V and a maximum supply voltage of 29V.
PackageTO-263
Current Rating5A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1084IS-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
5A
Dropout Voltage
1.3V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Min Current Limit
5.5A
Max Input Voltage
25V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
5V
Max Power Dissipation
30W
Max Supply Voltage
29V
Min Supply Voltage
6.5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
5A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
30W
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1084IS-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1084IS-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

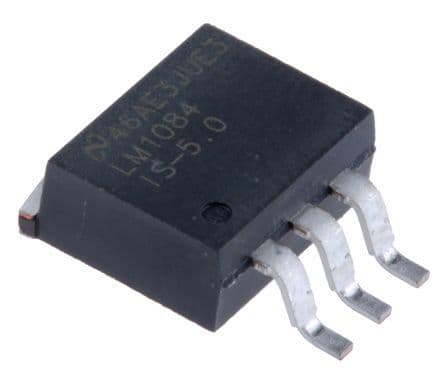

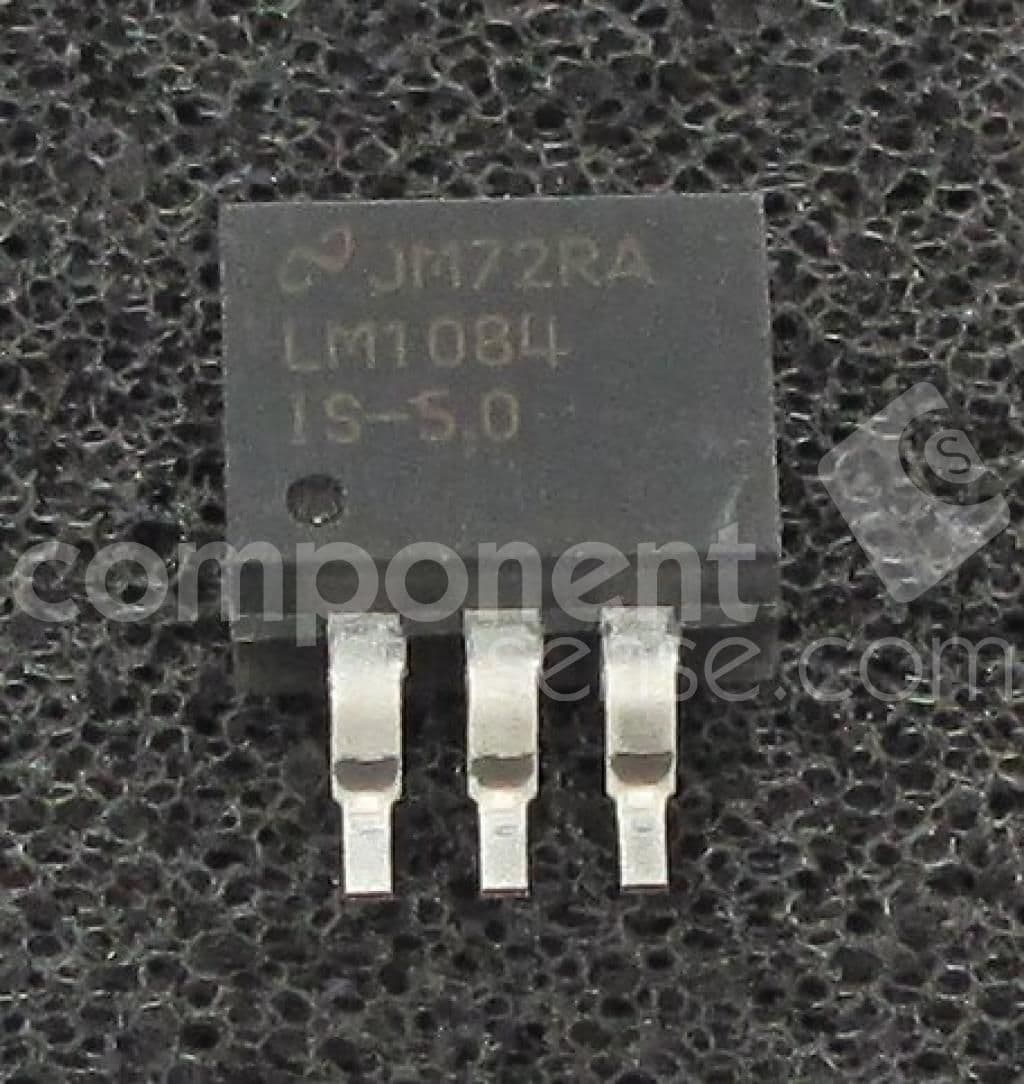

Product Images
