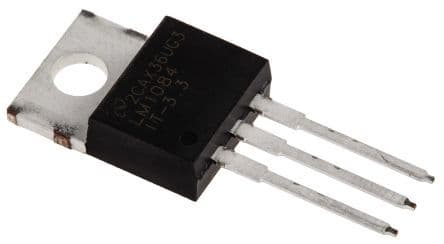

5A, 3.3V fixed output positive linear voltage regulator. Features a 5A maximum output current, 1.3V dropout voltage, and a maximum input voltage of 27V. This through-hole component operates within a -40°C to 125°C temperature range and offers 72dB PSRR. Packaged in a TO-220 case, it supports a 5.5A minimum current limit and 30W power dissipation.
PackageTO-220
Current Rating5A
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1084IT-3.3/NOPB technical specifications.
General
Package/Case
TO-220
Current Rating
5A
Dropout Voltage
1.3V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
5.5A
Max Input Voltage
27V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Min Output Voltage
3.3V
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
5A
Output Type
Fixed
Output Voltage
3.3V
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
30W
Power Supply Rejection Ratio (PSRR)
72dB
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
4.572mm
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1084IT-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1084IT-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
