5.5A positive fixed linear voltage regulator with a 5V output voltage. Features a 1.3V dropout voltage and a maximum input voltage of 27V. Designed for through-hole mounting in a TO-220 package, operating from -40°C to 125°C. Offers a maximum output current of 5A and a power dissipation of 30W. This RoHS compliant component is supplied in rail/tube packaging.
PackageTO-220
MountingThrough Hole
PolarityPositive
Power30W
Quick Jump:
Technical Specifications
Texas Instruments LM1084IT-5.0/NOPB technical specifications.
General
Package/Case
TO-220
Dropout Voltage
1.3V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
5.5A
Max Input Voltage
27V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
5A
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
30W
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1084IT-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1084IT-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

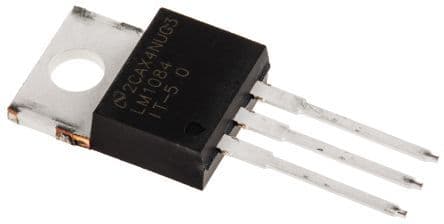

Product Images
