PackageTO-263
Current Rating1.5A
Quick Jump:
Technical Specifications
Texas Instruments LM1086CS-3.3 technical specifications.
General
Package/Case
TO-263
Current Rating
1.5A
Dropout Voltage
1.3V
Max Input Voltage
30V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM1086CS-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM1086CS-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

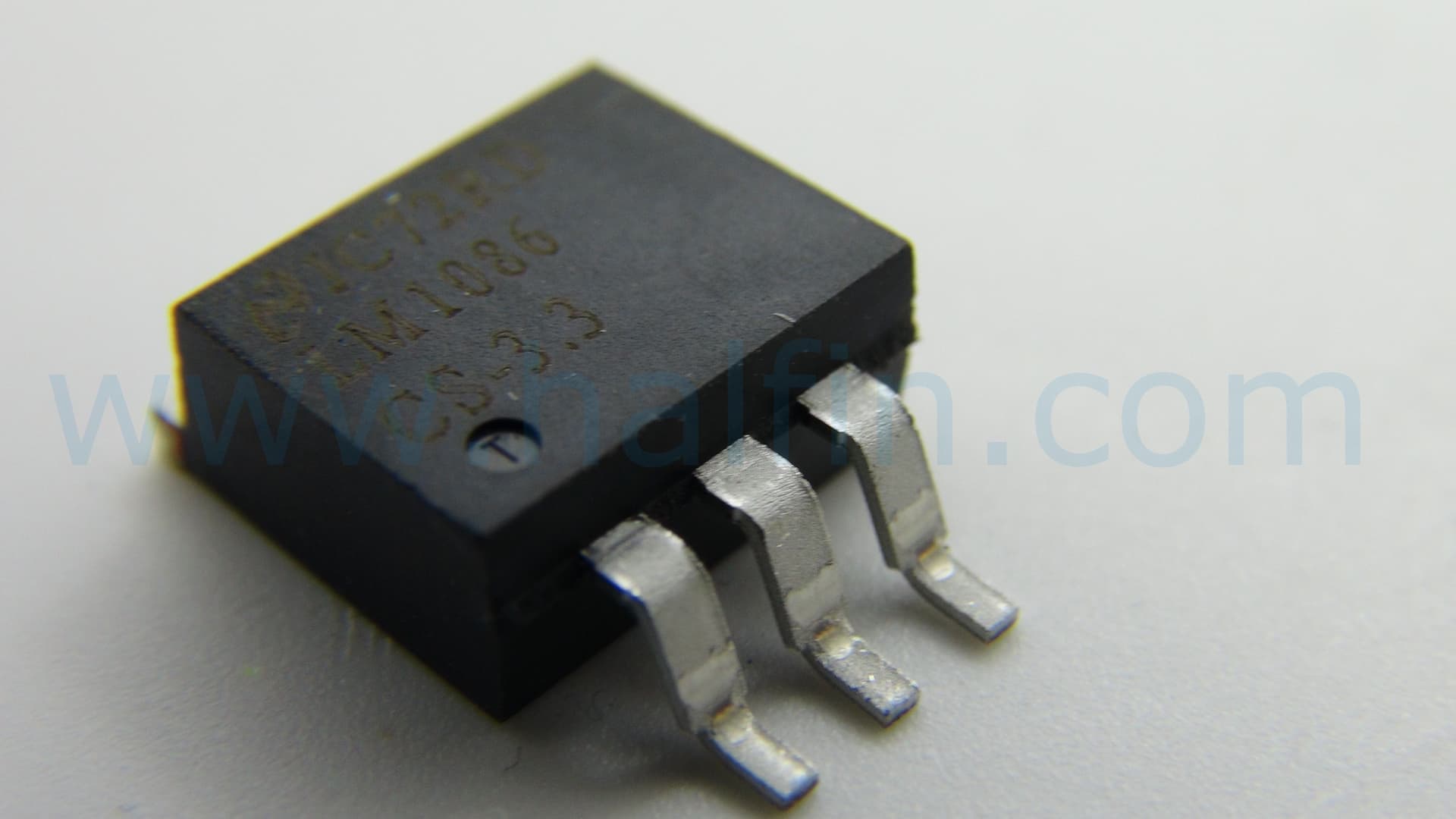

Product Images
