1.5A fixed output linear voltage regulator with a 5V nominal output. Features a 1.3V dropout voltage and a maximum input voltage of 25V. Operates within a temperature range of 0°C to 125°C. Packaged in a TO-263 surface mount case. RoHS compliant.
PackageTO-263
Current Rating1.5kA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086CS-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
1.5kA
Dropout Voltage
1.3V
Lead Free
Contains Lead
Min Current Limit
1.5A
Max Input Voltage
25V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Max Output Voltage
5V
Max Supply Current
10mA
Max Supply Voltage
25V
Min Supply Voltage
8V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
68dB
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
4.44mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086CS-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086CS-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

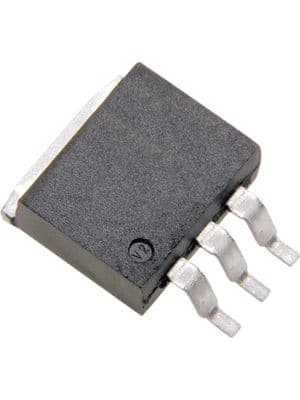

Product Images
