Positive fixed output linear voltage regulator, offering a 3.3V output with a 1.5A maximum output current. Features a 1.3V dropout voltage and a maximum input voltage of 30V. Operates within a temperature range of 0°C to 125°C. Packaged in a TO-263 surface mount case, supplied on tape and reel.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086CSX-3.3/NOPB technical specifications.
General
Package/Case
TO-263
Dropout Voltage
1.3V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Min Current Limit
1.5A
Max Input Voltage
30V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
500
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086CSX-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086CSX-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

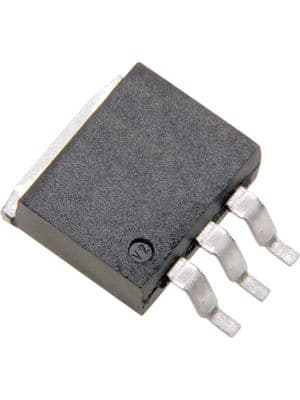

Product Images
