1.5A fixed output linear voltage regulator with a 3.3V output voltage. Features a 1.3V dropout voltage and a maximum input voltage of 27V. Operates within a temperature range of 0°C to 125°C and is housed in a TO-220 package for through-hole mounting. This positive polarity regulator offers a 1.5A maximum output current and is RoHS compliant.
PackageTO-220
Current Rating1.5kA
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086CT-3.3/NOPB technical specifications.
General
Package/Case
TO-220
Current Rating
1.5kA
Dropout Voltage
1.3V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
1.5A
Max Input Voltage
27V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
4.572mm
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086CT-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086CT-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

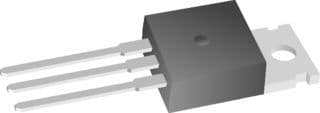

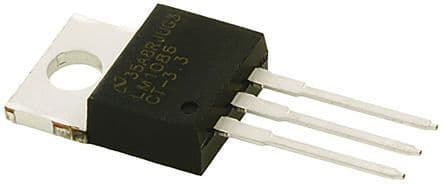

Product Images
