PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM1086IS-1.8/NOPB technical specifications.
General
Package/Case
TO-263
Dropout Voltage
1.3V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
27V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Mount
Surface Mount
Nominal Output Voltage
1.8V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
1.8V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086IS-1.8/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086IS-1.8/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

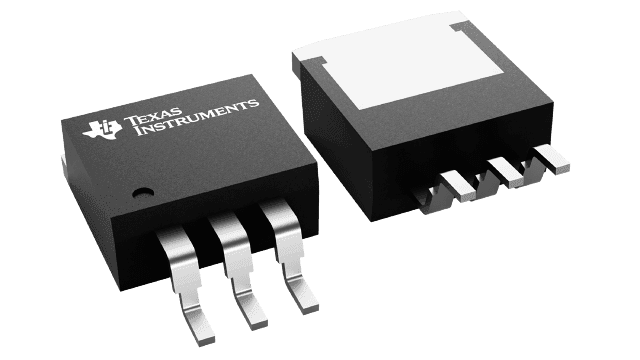

Product Images
