1.5A fixed output linear voltage regulator with a 3.3V nominal output voltage. Features a maximum input voltage of 29V and a dropout voltage of 1.3V. This positive polarity regulator is designed for surface mount applications with a TO-263 package. Operating temperature range is -40°C to 125°C.
PackageTO-263
Current Rating1.5kA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086IS-3.3/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
1.5kA
Dropout Voltage
1.3V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Min Current Limit
1.5A
Max Input Voltage
30V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086IS-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086IS-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

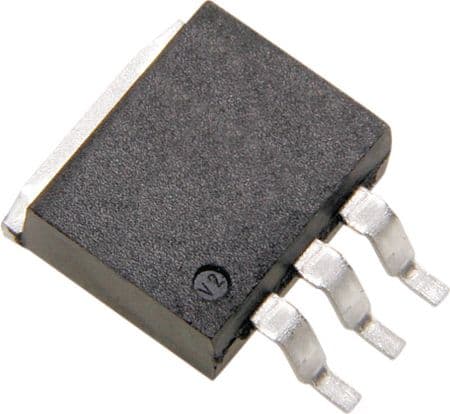

Product Images
