Positive fixed output linear voltage regulator, 5V nominal output, with a 1.5A maximum output current. Features a 1.3V dropout voltage and a maximum input voltage of 30V. Operates across a temperature range of 0°C to 125°C. Packaged in a TO-263 surface mount case.
PackageTO-263
Current Rating1.5kA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086IS-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
1.5kA
Dropout Voltage
1.3V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
30V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086IS-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086IS-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

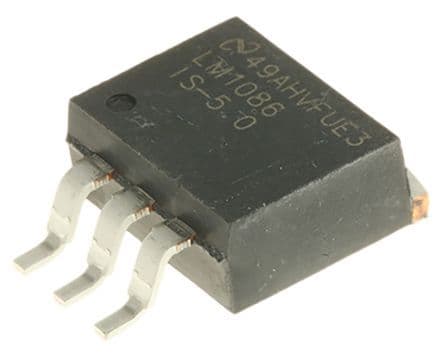

Product Images
