Positive linear voltage regulator with a fixed 3.3V output, capable of delivering up to 1.5A. Features a 1.3V dropout voltage and a maximum input voltage of 30V. Operates across a temperature range of 0°C to 125°C. Housed in a TO-220 package for through-hole mounting. RoHS compliant and lead-free.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM1086IT-3.3/NOPB technical specifications.
General
Package/Case
TO-220
Dropout Voltage
1.3V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
1.5A
Max Input Voltage
30V
Min Input Voltage
2.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1.5A
Mount
Through Hole
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM1086IT-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM1086IT-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

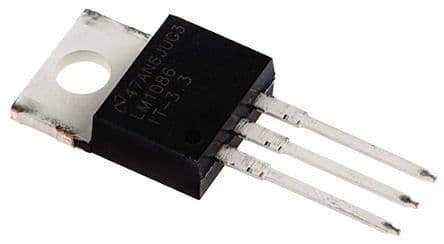

Product Images
